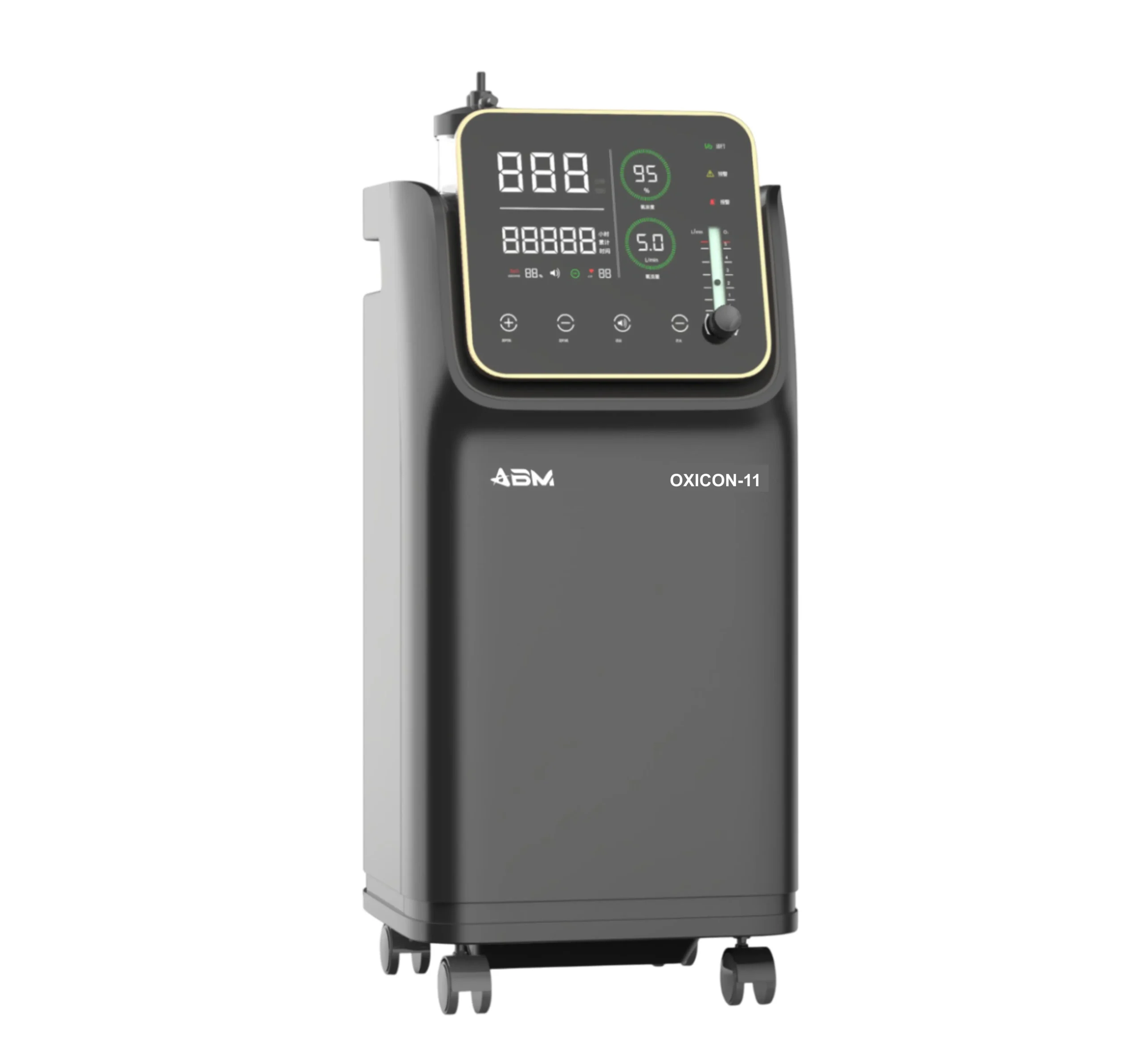

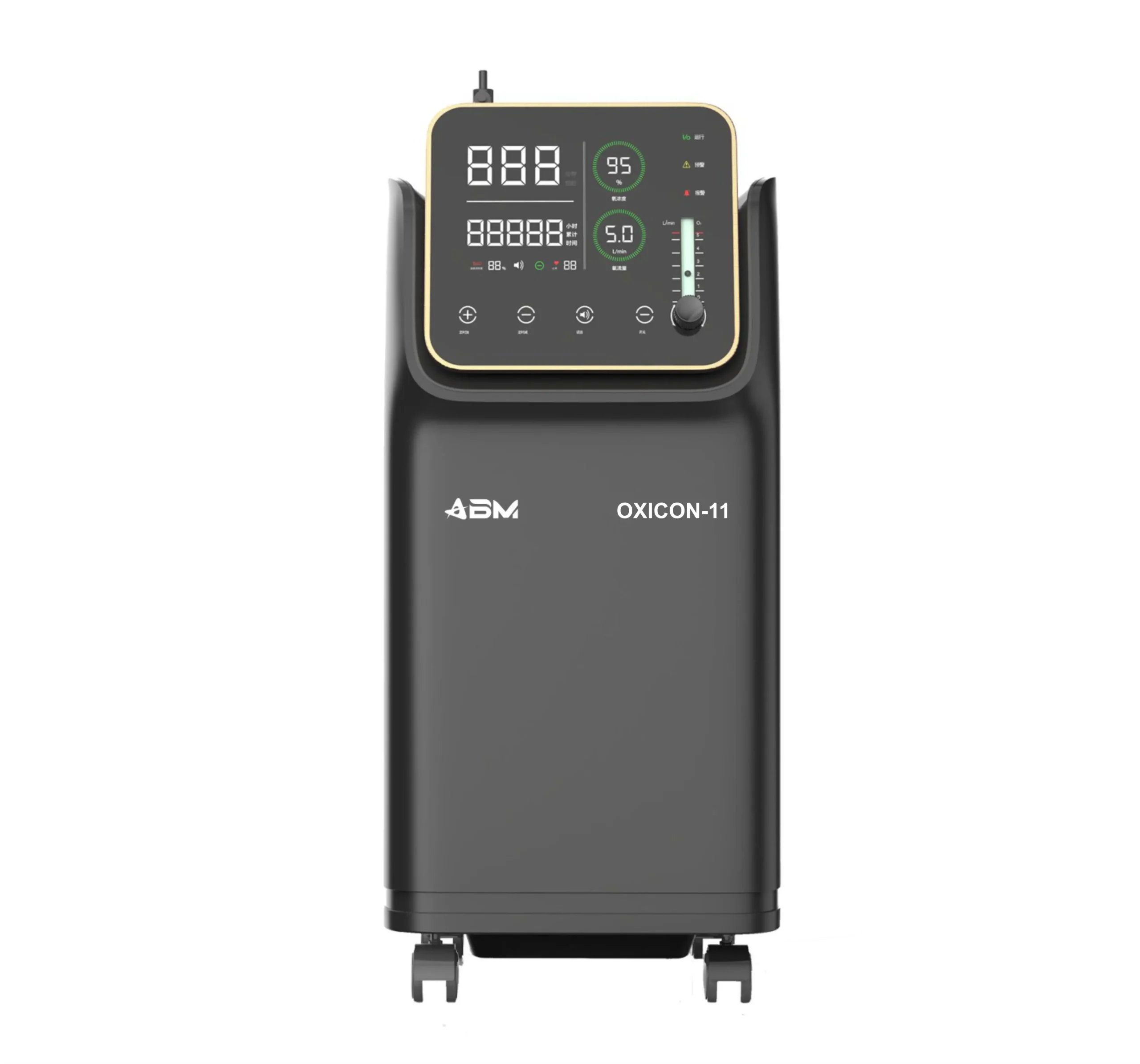

The ABM 5 LPM Oxygen Concentrator with Inbuilt Nebulizer is a dependable, medical-grade device designed to deliver continuous oxygen therapy for patients with respiratory conditions. It offers a stable flow rate of up to 5 liters per minute with consistent oxygen purity, making it suitable for both home care and clinical applications. Built for durability and ease of use, it features low-noise operation, safety alarms, and energy-efficient performance, ensuring comfort and reliability for long-term oxygen users.
Features of ABM 5 LPM Oxygen Concentrator:-
- Inbuit Nebulizer.
- The maximum recommended flow: 5L/min.
- The flow range of nominal pressure of 7 kPa: 0.5-5L/min.
- The output pressure:20.50 k pa.
- Release pressure of compressor safety valve: 250 k Pa_+50 k Pa.
- Machine noise:<60dB(A).
- Power supply :AC220V/50Hz.
- Input power: 400 va.
- Net weight: about 19 kg.
- Dimensions :305*308*680(mm).
- Minimum working time:no less than 30 minutes;
- Character of service: Continuous operation.
- Temperature of oxygen outlet<46°C;
- Ingress protection Rating:IPXO
Specifications of ABM 5 LPM Oxygen Concentrator:-
| The maximum recommended flow | 5L/min |
|---|---|
| The flow range of nominal pressure of 7 kpa | 0.5-5L/min |
| Oxygen Concentration/purity | 93% ± 3% (1 L/min ) |
| The Output pressure | 20.50 k pa |
| Input Power Consumption | 220 v |
| Machine Noise | <60 dBA |
| Net weight | about 19 kg |
| Electrical Classification | Class Il equipment, Type B application part |
| Character of Service | Continuous Operation |
| Power Supply | AC 220V/50HZ |
| Security Systems | Current overload of loose connection line, machine half, power Off, alarm and machine half |
| Oxygen Flow | Can be Adjusted (1-5L) |
| Dimensions | (305x308x680) mm |
| Temperature of oxygen outlet | <46°C. |
| Liquid Protection Rating | IPXO |
What’s in the box.?
- Oxygen Concentrator
- Nasal Cannula
- Humidifier Bottle
- Nebulizer kit
- Power Cord
- User Manual
- Reusable Filters
Additional information:-
- Warranty 1 Year
- Weight 20 kg
FAQs Related of ABM 5 LPM Oxygen Concentrator:-
Q1: What is the oxygen purity level of the ABM 5 LPM?
A1: It delivers medical-grade oxygen with 93% ± 3% purity at all flow rates.
Q2: Can it operate continuously?
A2: Yes, it is designed for 24-hour continuous use with energy-efficient performance.
Q3: What flow rates can I set?
A3: You can adjust it between 0.5 LPM and 5 LPM depending on your needs and doctor’s advice.
Q4: Does it come with accessories?
A4: Yes, it includes a humidifier bottle, nasal cannula, and power cord.
Q5: Is the machine noisy?
A5: No, it runs at ≤ 45 dB, which is quieter than a normal conversation.
Q6: What happens during a power cut?
A6: The unit needs electricity but can run on an inverter or generator.
Q7: Is it portable?
A7: Yes, it has caster wheels and a handle for easy movement inside your home.
Q8: How often should it be serviced?
A8: Only basic maintenance such as filter cleaning is required; no complex servicing needed.
Q9: Where can I get it repaired?
A9: Through authorized ABM service centers or with assistance from MedaxBuy Healthcare Services.
